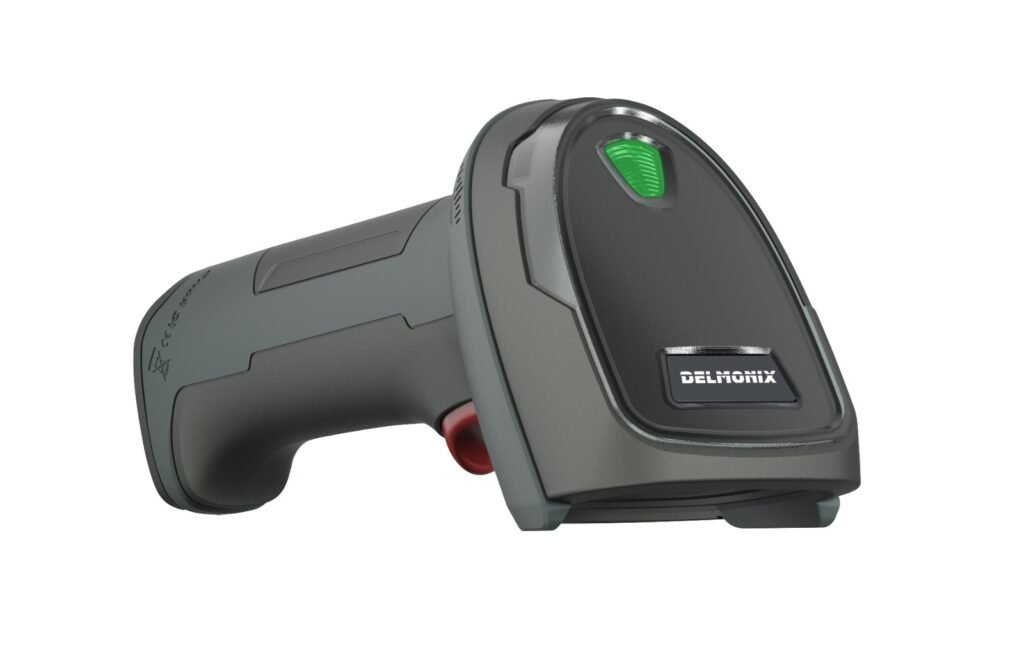

Delmonix DX740 2D Wired Barcode Scanner
High-speed 2D scanning with extended depth of field.
ModelDX740
Product type2D Wired Barcode Scanner
ConnectivityRS232, USB, Wired
Product Documents
DX740
Application-based consultation
Enterprise deployment support
Pan-India support
Product View
01
Product Overview
High-speed 2D scanning with extended depth of field.
The Delmonix DX740 is a high-performance 2D wired barcode scanner built for fast, accurate capture across demanding retail, warehouse and manufacturing workflows. A 1.2G high-frequency processor, global-exposure imaging module and extended scanning depth help it read common 1D and 2D codes, including worn or damaged barcodes.
Key Features
- 1D and 2D barcode support
- 1280 × 1024 CMOS imaging resolution
- Scanning speed up to 120 FPS
- Motion tolerance up to 2 m/s
- Scanning depth of field up to 400 mm
- USB-HID, USB-COM and RS232 interfaces
- 1.5-metre drop resistance
Applications
- Warehousing
- Manufacturing
- Retail
- Inventory Control
- Model
- DX740
- SKU
- DELMONIX-DX740
- Category
- 2D Wired Barcode Scanner
- Connectivity
- RS232, USB, Wired
02
Key Capabilities
Built for operational performance.
Review the key capabilities published for this product and assess how they fit the intended workflow.
1280 × 1024 CMOS imaging resolution
Scanning speed up to 120 FPS
Motion tolerance up to 2 m/s
Scanning depth of field up to 400 mm
USB-HID, USB-COM and RS232 interfaces
1.5-metre drop resistance
03
Applications
Designed around enterprise workflows.
Warehousing
Manufacturing
Retail
Inventory Control
04
Technical Specifications
Detailed product information.
Review the published specifications to assess fit for the operating environment, connectivity and integration requirements.
General
- Model
- DX740
- Product type
- 2D wired barcode scanner
- Connection mode
- Wired (USB)
Performance
- Processor
- 1.2G ultra-high frequency chip
Optical and scanning
- Scanning principle
- Imaging CMOS
- Resolution
- 1280 × 1024
- Light source
- White LED illumination; green aiming light
- Trigger modes
- Manual; continuous; auto-sensing
- Scanning angle
- Rotation 360°; elevation ±65°; deflection ±65°
- Field of view
- 44° horizontal; 33° vertical
- Scan speed
- Up to 120 FPS
- Motion tolerance
- Up to 2 m/s
- Scanning depth of field
- Up to 400 mm
- Bit error rate
- 1 / 5,000,000
- Minimum contrast
- ≥ 20%
Decode range
- EAN-13 (13 mil)
- 55–400 mm
- Code 39 (5 mil)
- 50–230 mm
- QR Code (15 mil)
- 75–270 mm
- Code 128 (5 mil)
- 65–220 mm
Symbologies
- 1D codes
- Codabar, Code 39, Code 32, Interleaved 2 of 5, NEC 2 of 5, Code 93, Industrial 2 of 5, IATA 2 of 5, Matrix 2 of 5, Code 11, Code 128, GS1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, MSI, GS1 DataBar and supported postal codes
- 2D codes
- Codeblock A, Codeblock F, PDF417, Micro PDF417, Aztec, GS1 Composite, QR Code, Data Matrix, MaxiCode, HANXIN
Interface
- Communication
- USB-HID; USB-COM; RS232
Electrical
- Voltage
- DC 5V ±5%
- Working current
- 230 mA
- Standby current
- 150 mA
Physical
- Dimensions
- 181 × 68 × 85 mm
- Material
- ABS + PC
- Cable length
- 1.5 m
Environmental
- Operating temperature
- -20°C to 50°C
- Storage temperature
- -40°C to 70°C
- Operating humidity
- 5%–95% non-condensing
- Ambient light
- 0–100,000 Lux
- Drop resistance
- 1.5-metre free fall
05
Product Resources
Documentation for product evaluation.
Open product documentation in a new tab or download available PDF resources for offline review.
01
DX740
Product Brochure
Product overview, key capabilities, applications and published specifications.
02
DX740
Technical Datasheet
Detailed technical information for product evaluation and integration planning.
