Delmonix Enterprise Hardware
Hands-Free and Presentation Scanners

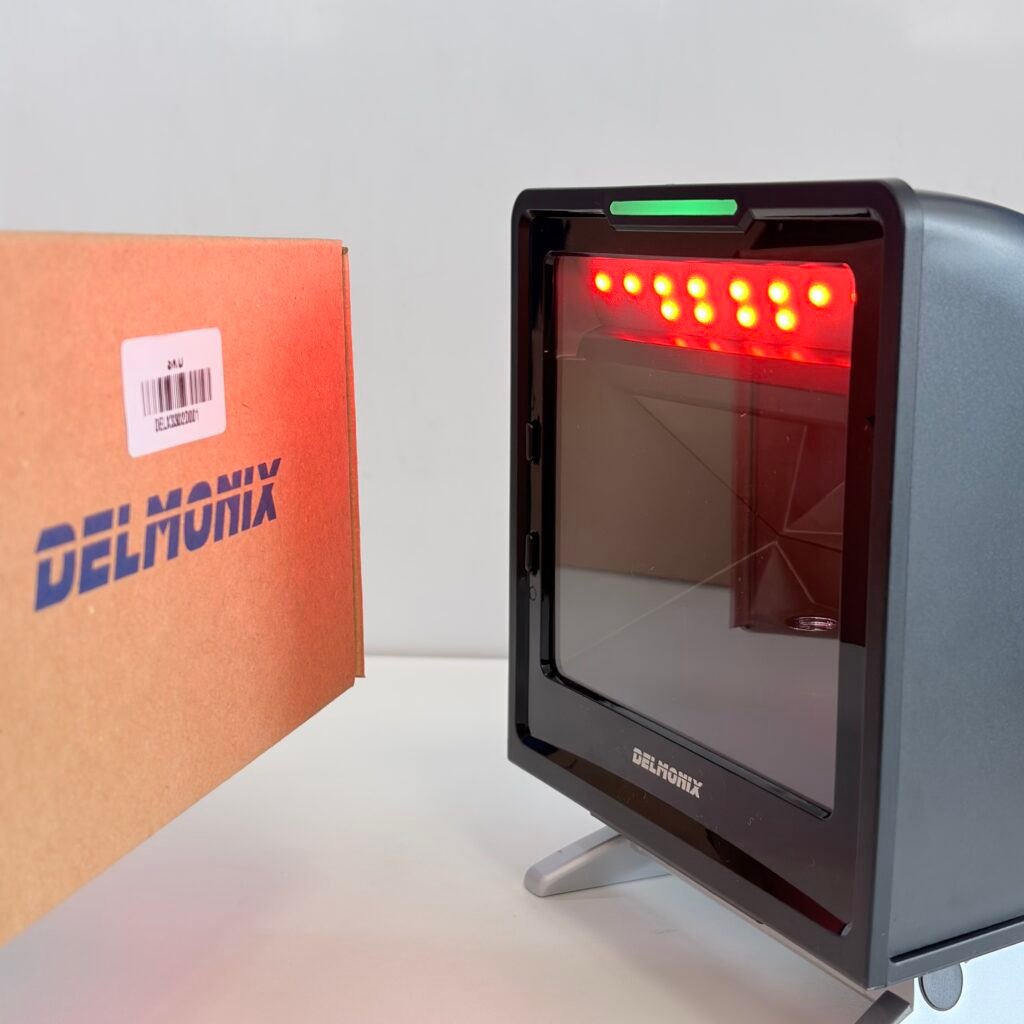

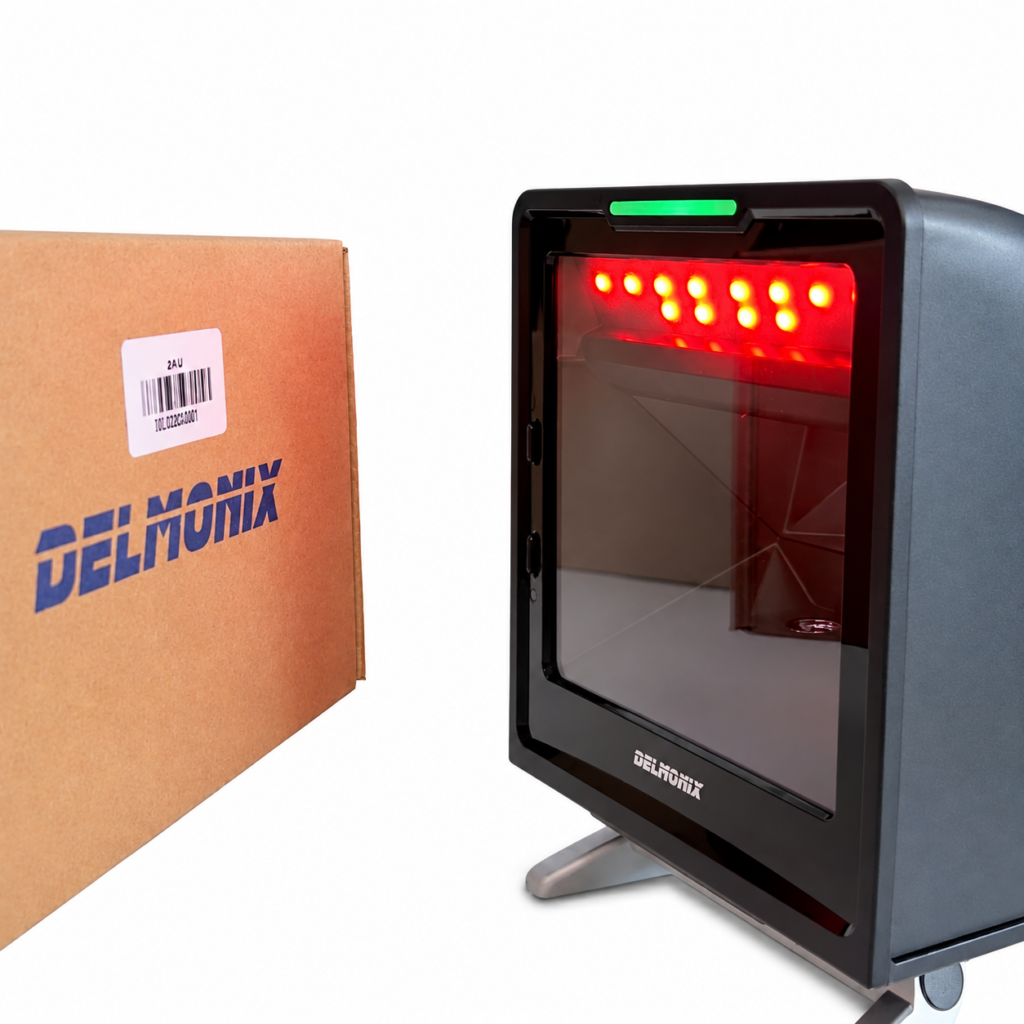

Delmonix DX930 Omnidirectional Presentation Scanner
Hands-free omnidirectional scanning for high-throughput counters.
ModelDX930
Product typeHands-Free 2D Presentation Scanner
ConnectivityRS232, USB, Wired
Product Documents
DX930
Technical Datasheet
Application-based consultation
Enterprise deployment support
Pan-India support
Product View
01
Product Overview
Hands-free omnidirectional scanning for high-throughput counters.
The Delmonix DX930 is a hands-free omnidirectional presentation scanner for high-throughput barcode capture. Its 1280 × 1024 image sensor, motion tolerance and automatic induction mode support fast reading of standard and damaged barcodes at retail and fixed scanning points.
Key Features
- Hands-free omnidirectional operation
- 1280 × 1024 image sensor
- Motion tolerance up to 4 m/s
- Standard and damaged barcode recognition
- Visual and adjustable buzzer feedback
- USB, USB-COM and RS232 interfaces
Applications
- Retail
- Supermarkets
- POS Checkout
- High-Volume Scanning
- Model
- DX930
- SKU
- DELMONIX-DX930
- Category
- Hands-Free 2D Presentation Scanner
- Connectivity
- RS232, USB, Wired
02
Key Capabilities
Built for operational performance.
Review the key capabilities published for this product and assess how they fit the intended workflow.
1280 × 1024 image sensor
Motion tolerance up to 4 m/s
Standard and damaged barcode recognition
Visual and adjustable buzzer feedback
USB, USB-COM and RS232 interfaces
03
Applications
Designed around enterprise workflows.
Retail
Supermarkets
POS Checkout
High-Volume Scanning
04
Technical Specifications
Detailed product information.
Review the published specifications to assess fit for the operating environment, connectivity and integration requirements.
General
- Model
- DX930
- Product type
- Hands-free 2D presentation scanner
- Scan technology
- CMOS image-based scanning
- Operation mode
- Automatic induction mode
- Compatibility
- POS systems and other equipment
Optical and scanning
- Image sensor
- 1280 × 1024 pixels
- Motion tolerance
- Up to 4 m/s
- Scanning angle
- Elevation ±65°; declination ±65°; rotation ±360°
- Recognition
- Standard and damaged barcode recognition
Decode range
- EAN-13 (13 mil, PCS 90%)
- 20–310 mm
Symbologies
- 1D codes
- Codabar, Code 39, Code 32, Interleaved 2 of 5, NEC 2 of 5, Code 93, Industrial 2 of 5, Matrix 2 of 5, Code 11, Code 128, ISBT-128, GS1-128, UPC-A, UPC-E, EAN/JAN-13, EAN/JAN-8, ISBN, MSI, GS1 DataBar
- 2D codes
- PDF417, QR Code, Data Matrix, Aztec, MaxiCode, Micro PDF417, GS1 Composite
Interface
- Communication
- USB driver-free; USB-COM; RS232
Electrical
- Voltage
- DC 5V ±5%
Physical
- Dimensions
- 150 × 97 × 148 mm
- Weight
- 540 g
- Material
- ABS + PC
Environmental
- Storage temperature
- -30°C to 70°C
- Shock resistance
- 1.5 m drop
05
Product Resources
Documentation for product evaluation.
Open product documentation in a new tab or download available PDF resources for offline review.
01
DX930
Technical Datasheet
Detailed technical information for product evaluation and integration planning.
