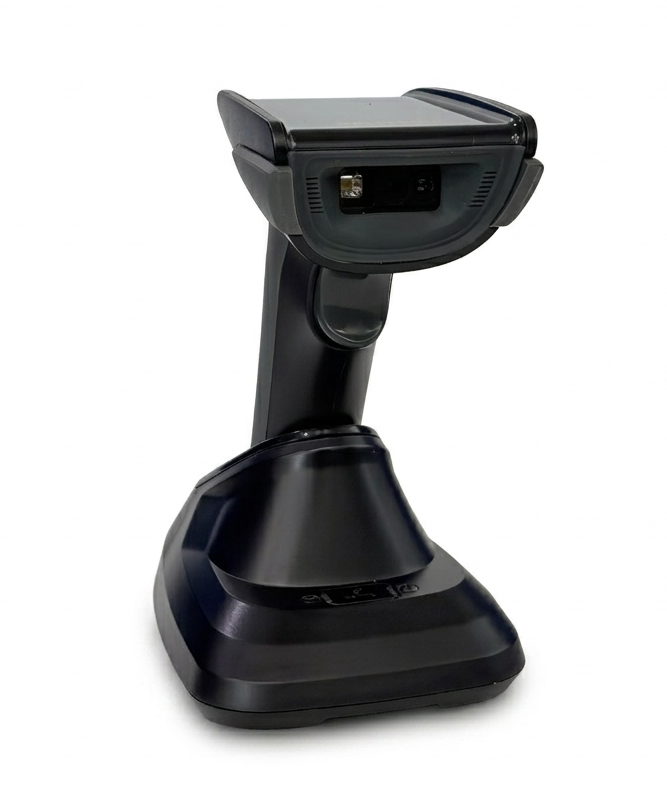

Delmonix DX430BT 2D 2.4G + Bluetooth Wireless Barcode Scanner
Dual-mode wireless 2D scanning with cradle pairing and all-shift mobility.
ModelDX430BT
Product type2D 2.4G + Bluetooth Wireless Handheld Barcode Scanner
Connectivity2.4G Wireless, Bluetooth, USB
Product Documents
DX430BT
Application-based consultation
Enterprise deployment support
Pan-India support
Product View
01
Product Overview
Dual-mode wireless 2D scanning with cradle pairing and all-shift mobility.
The Delmonix DX430BT is a 2D 2.4G + Bluetooth wireless handheld barcode scanner for flexible cordless data capture. Its 1280 × 800 CMOS imaging engine, 2200 mAh battery, up to 100-metre open-area wireless range and one-click cradle pairing support retail counters, hospitality and light warehouse workflows.
Key Features
- 1D and 2D barcode decoding
- 2.4G wireless + Bluetooth HID/BLE connectivity
- Up to 100 m wireless transmission in open space
- 1280 × 800 CMOS imaging resolution
- 2200 mAh lithium battery with approximately 25,000 scans per charge
- One-click pairing through multifunctional charging cradle
- 1.5-metre drop resistance
Applications
- Retail
- Restaurant and Hospitality
- Small Business Counters
- Light Warehousing
- Model
- DX430BT
- SKU
- DELMONIX-DX430BT
- Category
- 2D 2.4G + Bluetooth Wireless Handheld Barcode Scanner
- Connectivity
- 2.4G Wireless, Bluetooth, USB
02
Key Capabilities
Built for operational performance.
Review the key capabilities published for this product and assess how they fit the intended workflow.
2.4G wireless + Bluetooth HID/BLE connectivity
Up to 100 m wireless transmission in open space
1280 × 800 CMOS imaging resolution
2200 mAh lithium battery with approximately 25,000 scans per charge
One-click pairing through multifunctional charging cradle
1.5-metre drop resistance
03
Applications
Designed around enterprise workflows.
Retail
Restaurant and Hospitality
Small Business Counters
Light Warehousing
04
Technical Specifications
Detailed product information.
Review the published specifications to assess fit for the operating environment, connectivity and integration requirements.
General
- Model
- DX430BT
- Product type
- 2D 2.4G + Bluetooth wireless handheld barcode scanner
- Operation
- Cordless with multifunctional charging cradle
Optical and scanning
- Scanning principle
- Imaging CMOS
- Image resolution
- 1280 × 800
- Light source
- White illumination light; green aiming light
- Trigger modes
- Manual; continuous; auto-inductive
- Scan angle
- Skew ±65°; roll 360°; pitch ±65°
- Minimum contrast
- ≥ 20%
- Error rate
- Less than 1 / 5,000,000
Decode range
- Code 128 (5 mil)
- 30–140 mm
- EAN-13 (13 mil)
- 30–260 mm
- QR Code (15 mil)
- 30–220 mm
- Code 39 (5 mil)
- 40–160 mm
Symbologies
- 1D codes
- Code 128, EAN-13, EAN-8, UPC-E, UPC-A, ISBN, ISSN, Code 11, Interleaved 2 of 5, Code 39, Code 93, Code 32, Codabar, Matrix 2 of 5, Industrial 2 of 5, IATA 2 of 5, MSI Plessey, GS1 DataBar, Plessey, Febraban
- 2D codes
- QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF417, Aztec Code, MaxiCode, DotCode, Composite Code
Connectivity
- Wireless
- 2.4G wireless + Bluetooth HID/BLE
- Wireless range
- Up to 100 m in open space
- Base interface
- USB-HID; USB-COM
Battery
- Capacity
- 2200 mAh lithium
- Scan capacity
- Up to 25,000 scans per charge
- Continuous working time
- Approximately 7 hours at 1 scan/second
- Charging time
- 5–6 hours
Physical
- Dimensions
- 164.5 × 83.6 × 69 mm
- Material
- ABS + PC
- Cable length
- 1.5 m ±0.1 m
Environmental
- Operating temperature
- -20°C to 50°C
- Storage temperature
- -40°C to 70°C
- Operating humidity
- 5%–95% non-condensing
- Ambient lighting
- 0–100,000 Lux
- Drop resistance
- Multiple 1.5 m drops to concrete
05
Product Resources
Documentation for product evaluation.
Open product documentation in a new tab or download available PDF resources for offline review.
01
DX430BT
Product Brochure
Product overview, key capabilities, applications and published specifications.
02
DX430BT
Technical Datasheet
Detailed technical information for product evaluation and integration planning.
