Delmonix Enterprise Hardware
Handheld Barcode Scanners

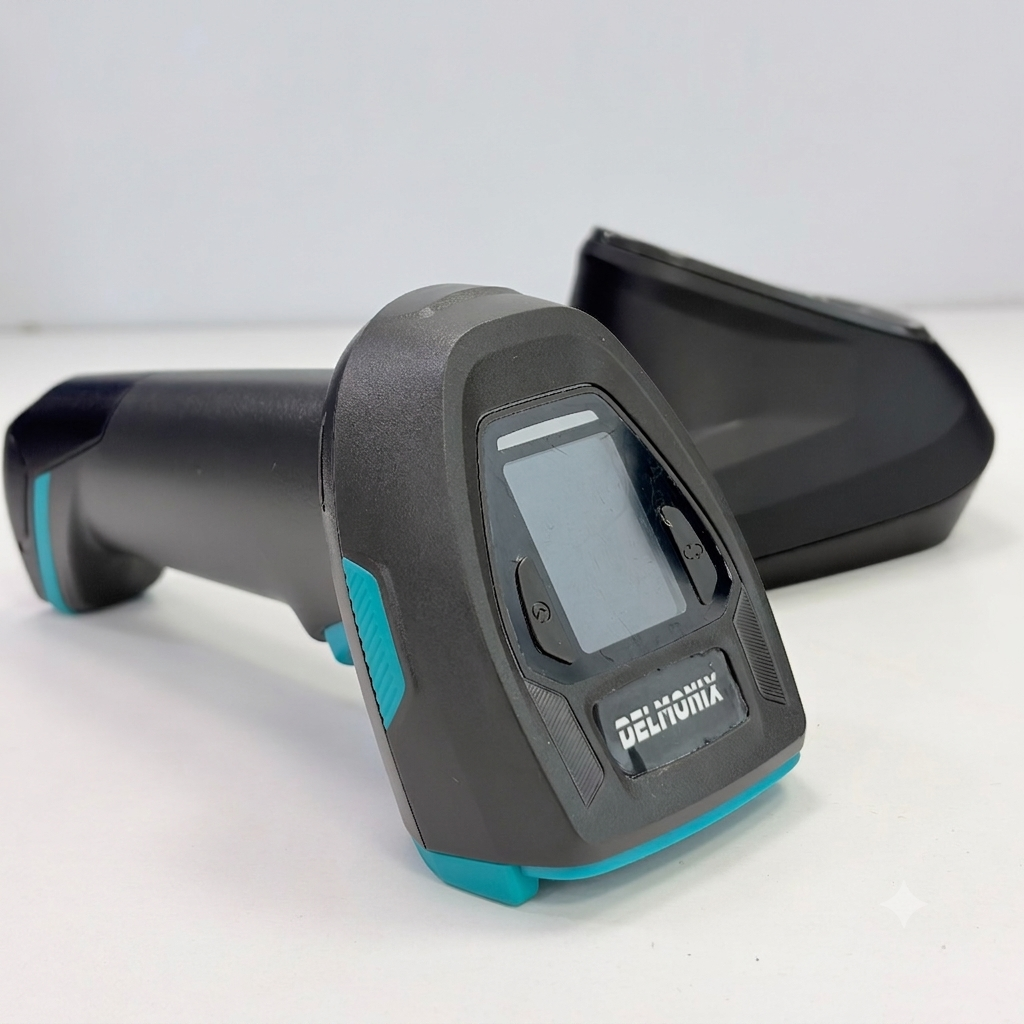

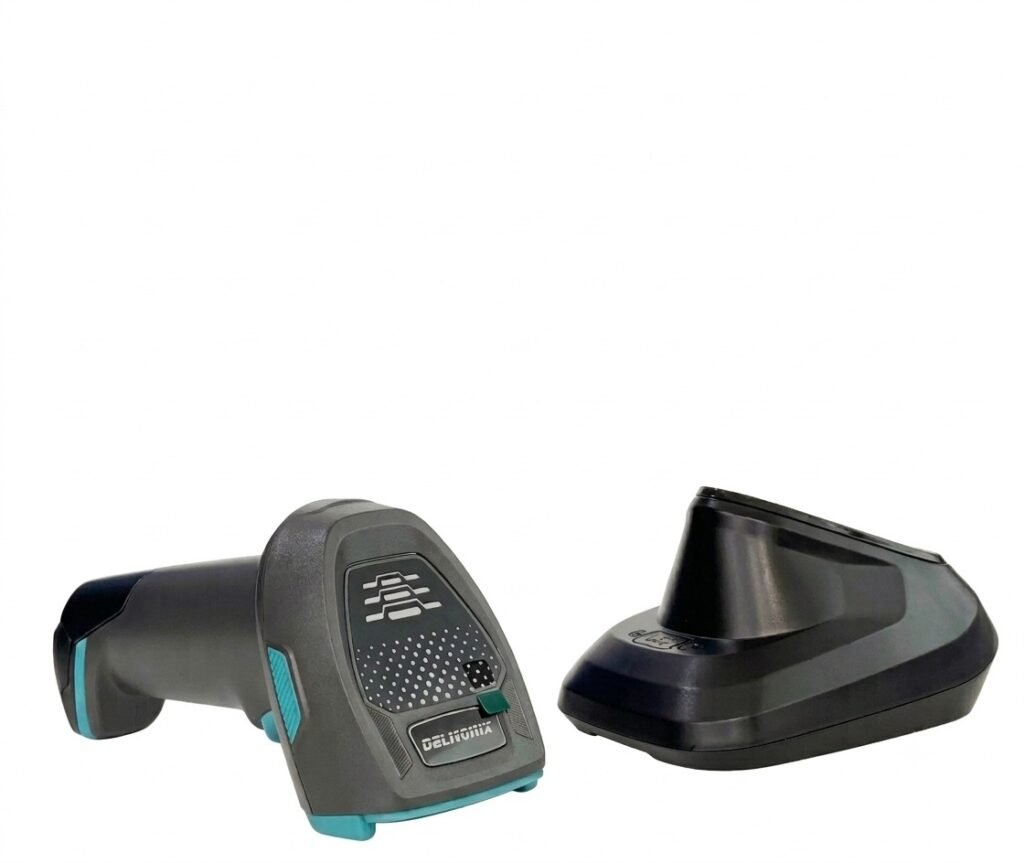

Delmonix DX330BT Wireless 1D/2D Barcode Scanner
Wireless barcode capture with offline storage and inventory modes.
ModelDX330BT
Product typeWireless Handheld Barcode Scanner
ConnectivityBluetooth, USB, Wireless
Product Documents
DX330BT
Application-based consultation
Enterprise deployment support
Pan-India support
Product View
01
Product Overview
Wireless barcode capture with offline storage and inventory modes.
The Delmonix DX330BT is a wireless handheld scanner for 1D and 2D barcode capture. It supports offline storage and inventory modes, long-range wireless operation, and extended scanning sessions for mobile workflows across retail, warehousing and logistics environments.
Key Features
- 1D and 2D barcode support
- Wireless transmission up to 100 metres in open space
- Offline storage and inventory modes
- Approximately 25,000 scans per charge
- Bluetooth HID and BLE support
- 1.5-metre drop resistance
Applications
- Retail
- Warehousing
- Logistics
- E-commerce and Distribution
- Model
- DX330BT
- SKU
- DELMONIX-DX330BT
- Category
- Wireless Handheld Barcode Scanner
- Connectivity
- Bluetooth, USB, Wireless
02
Key Capabilities
Built for operational performance.
Review the key capabilities published for this product and assess how they fit the intended workflow.
Wireless transmission up to 100 metres in open space
Offline storage and inventory modes
Approximately 25,000 scans per charge
Bluetooth HID and BLE support
1.5-metre drop resistance
03
Applications
Designed around enterprise workflows.
Retail
Warehousing
Logistics
E-commerce and Distribution
04
Technical Specifications
Detailed product information.
Review the published specifications to assess fit for the operating environment, connectivity and integration requirements.
General
- Model
- DX330BT
- Product type
- Wireless handheld 1D/2D barcode scanner
- Processor
- 1G ultra-high main-frequency chip
- Trigger life
- >10 million operations
- Modes
- Offline storage; inventory mode
Optical and scanning
- Image sensor
- 640 × 480 CMOS
- Light source
- White LED illumination; green aiming light
- Motion tolerance
- Up to approximately 4 m/s
- Error rate
- ≤ 1 / 5,000,000
- Scanning angle
- Pitch ±65°; yaw ±65°; rotation ±360°
- Minimum resolution
- ≥ 5 mil
- Minimum contrast
- ≥ 20%
Decode range
- Code 39 (5 mil)
- 60–180 mm
- Code 128 (5 mil)
- 50–160 mm
- QR Code (15 mil)
- 75–190 mm
Symbologies
- 1D codes
- Code 39, Code 128, Code 93, Codabar, EAN-8, EAN-13, UPC-A, UPC-E, Interleaved 2 of 5, MSI, GS1-128, GS1 DataBar
- 2D codes
- QR Code, Data Matrix, PDF417, Micro PDF417, Aztec, MaxiCode, HanXin
Connectivity
- Bluetooth
- HID and BLE
- Wireless range
- 80–100 m in open area
- Wired interface
- USB-HID; USB-COM
- Supported systems
- Windows, Android, iOS, Linux
Battery
- Battery type
- Rechargeable Li-ion
- Battery capacity
- 2200 mAh industrial version
- Working time
- Approximately 7–12 hours continuous scanning
- Scan capacity
- Approximately 25,000 scans per charge
- Charging
- USB or charging cradle
Physical
- Dimensions
- 174 × 82 × 66 mm
- Weight
- Approximately 170 g
- Material
- ABS + PC industrial plastic
Environmental
- Operating temperature
- -20°C to 50°C
- Storage temperature
- -40°C to 70°C
- Humidity
- 5%–95% non-condensing
- Ambient light
- 0–100,000 Lux
- Drop resistance
- 1.5 m
05
Product Resources
Documentation for product evaluation.
Open product documentation in a new tab or download available PDF resources for offline review.
01
DX330BT
Product Brochure
Product overview, key capabilities, applications and published specifications.
02
DX330BT
Technical Datasheet
Detailed technical information for product evaluation and integration planning.
